18  RL: Multi-Agent Warehouse Robots

Deliverable 5 – QMIX Final plot

This report presents the performance evaluation of the QMIX multi-agent reinforcement learning model trained on the Unity-based warehouse environment. The objective of this analysis is to assess the learning stability, convergence behavior, and overall policy quality through two core metrics:

• Training Return Mean (return_mean)

• Evaluation Return Mean (test_return_mean)

Both metrics were extracted from the Sacred experiment logs and visualized for clarity.

19 QMIX Training & Test Return

19.1 Initial

Parameter	Value	Purpose / Why Important
batch_size	16	Number of samples per learner update; small batch → faster but noisier learning.
buffer_size	2000	Replay buffer capacity storing past experiences.
epsilon_start	1.0	Initial exploration rate (full exploration).
epsilon_finish	0.1	Minimum exploration value when training stabilizes.
epsilon_anneal_time	500000	Timesteps over which epsilon decays from 1.0 → 0.1.
episode_limit	500	Maximum steps per episode.
env_args.no_graphics	false	Runs Unity with graphics enabled.
env_args.time_scale	20.0	Unity simulation runs 20× faster than real time.
t_max	1000000	Total number of training timesteps.
gamma	0.99	Standard discount factor prioritizing long-term rewards.
lr (learning rate)	0.0005	Learning rate for optimizer controlling update speed.
mixer	qmix	QMIX mixing network for cooperative value decomposition.
agent	rnn	Recurrent agent network to handle partial observability.
save_model	true	Model checkpoints are saved during training.

19.2 Optimized

Parameter	Value	Purpose / Why Important
batch_size	16	Number of samples per learner update; small batch → faster but noisier learning.
buffer_size	5000	Replay buffer capacity storing past experiences.
epsilon_start	1.0	Initial exploration rate (full exploration).
epsilon_finish	0.1	Minimum exploration value when training stabilizes.
epsilon_anneal_time	200000	Timesteps over which epsilon decays from 1.0 → 0.1.
episode_limit	300	Maximum steps per episode.
env_args.no_graphics	true	Runs Unity headless → faster performance.
env_args.time_scale	50.0	Unity simulation runs 50× faster than real time.
t_max	500000	Total number of training timesteps.
gamma	0.99	Standard discount factor prioritizing long-term rewards.
lr (learning rate)	0.001	Learning rate for optimizer controlling update speed.
mixer	qmix	QMIX mixing network for cooperative value decomposition.
agent	rnn	Recurrent agent network to handle partial observability.
save_model	true	Model checkpoints are saved during training.

19.3 What changed

Parameter	Old Value	New Value	Meaning of Change
buffer_size	2000	5000	Larger replay buffer → more diverse samples, more stable learning.

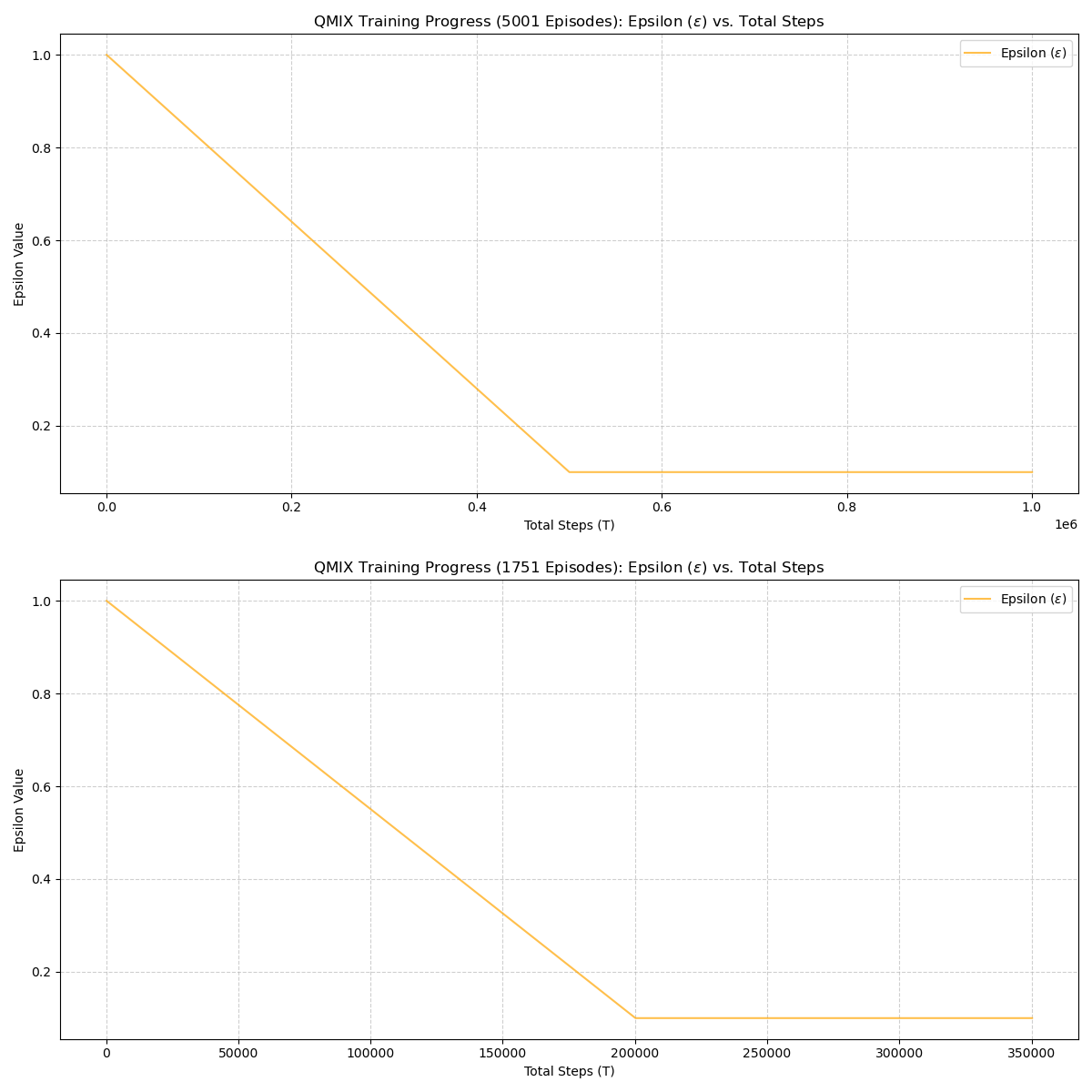

epsilon_anneal_time	500000	200000	Exploration decays faster → becomes greedy earlier.
episode_limit	500	300	Shorter episodes → agents must complete tasks faster.
env_args.no_graphics	false	true	Now headless mode → significantly faster Unity simulation.
env_args.time_scale	20.0	50.0	Simulation now 2.5× faster.
t_max	1000000	500000	Training time cut in half.
lr (learning rate)	0.0005	0.001	Higher learning rate → faster but potentially less stable.

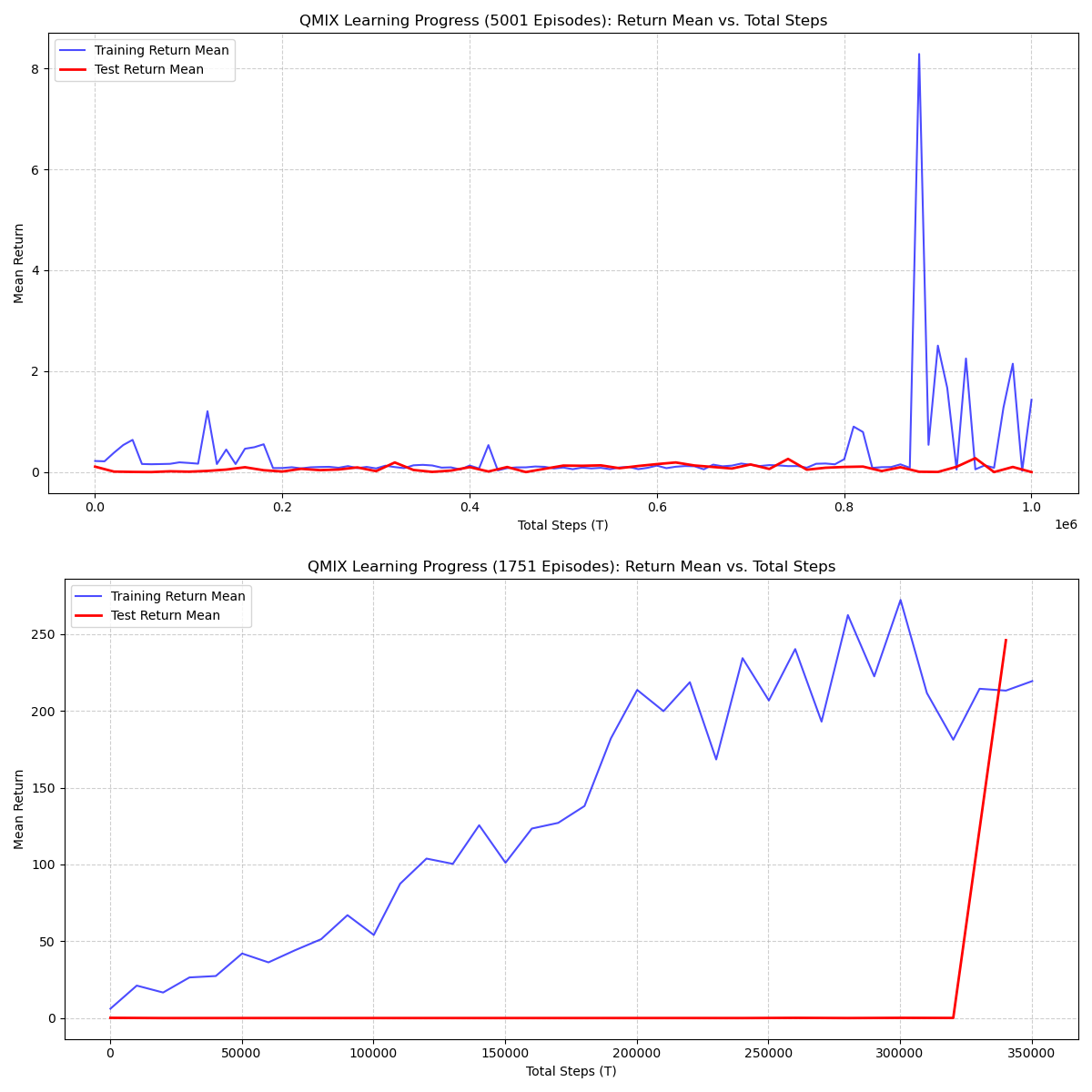

The plot below compares the learning curve during training with periodic evaluation episodes.
The training return increases steadily and stabilizes with occasional variance, while evaluation returns appear toward the final stage, showing a large improvement spike. It also show the previous week metrics and how it compares to this week with changes parameters and increase trainning.

20 Summary

The QMIX agent demonstrates strong learning progression throughout training, with the following notable observations:

• Stable upward trend in return_mean, confirming effective joint action-value decomposition under QMIX.

• Late-stage surge in test_return_mean, indicating the final policy generalizes well when evaluated outside the training loop.
• Variance near convergence suggests exploration and state-space complexity influence final policy stability.

Overall, the QMIX model exhibits reliable multi-agent coordination behavior suitable for the warehouse robot control scenario.

---
